Understanding the Role of AC MCB for Solar Safety

Solar power is changing how we use energy. It is clean, renewable, and cost-effective. But safety is key when you install solar systems. One important safety device is the AC MCB. If you want to protect your solar setup, you must understand the role of the AC MCB.

The AC MCB is a small but powerful device. It protects your solar system from electrical faults. Without it, your system could face damage or even fire risks. In this post, I will explain why the AC MCB is essential. I will also guide you on choosing the right MCB for your solar system.

Why AC MCB for Solar Safety Matters

Safety should never be an afterthought. When you install solar panels, you deal with electricity that can be dangerous. The AC MCB acts as a guardian. It detects faults like short circuits or overloads. When it senses a problem, it quickly cuts off the power.

This quick action prevents damage to your solar inverter and other equipment. It also protects your home or business from electrical fires. Using an AC MCB for solar safety is not just smart; it is necessary.

For example, if a wire inside your solar system gets damaged, the MCB will trip. This stops the flow of electricity and prevents further harm. Without the MCB, the fault could cause a fire or damage expensive equipment.

Close-up view of AC MCB switch in electrical panel

How AC MCB Works in Solar Systems

The AC MCB works by monitoring the current flowing through your solar system. It is installed on the AC side of the solar inverter. When the current exceeds a safe limit, the MCB trips and breaks the circuit.

This action is automatic and fast. It protects your system from overloads and short circuits. The MCB resets easily once the fault is fixed. This means you can quickly restore power without calling an electrician.

The MCB also helps in maintenance. You can switch off the AC side safely when servicing your solar system. This reduces the risk of electric shock.

Here are the key functions of the AC MCB in solar systems:

• Overload protection: Trips when current is too high for a long time.

• Short circuit protection: Trips instantly when a short circuit occurs.

• Manual switching: Allows safe disconnection of the AC side.

• Easy reset: Can be reset after fault clearance.




Using an AC MCB ensures your solar system runs smoothly and safely.

Which type of MCB is used for AC?

Choosing the right MCB type is crucial. For the AC side of solar systems, you need an MCB designed for AC current. These MCBs are rated for the voltage and current your system uses.

Typically, a Type C MCB is recommended for solar systems. It trips quickly on short circuits but allows brief surges during startup. This is important because solar inverters can cause short surges when they start.

Here are some tips for selecting the right MCB:

1. Check the current rating: Match the MCB rating with your system’s maximum current.

2. Choose the correct trip curve: Type C is common for solar systems.

3. Ensure voltage rating: The MCB should handle your system’s AC voltage.

4. Look for quality certifications: Use MCBs that meet Indian safety standards.




Using the right MCB type protects your system and ensures compliance with safety rules.

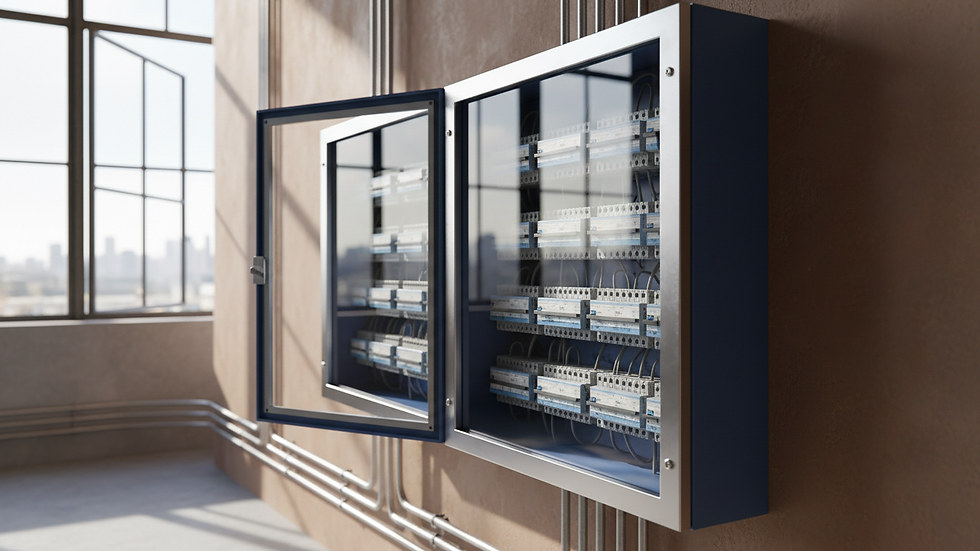

Eye-level view of electrical panel with multiple MCBs installed

Installation Tips for AC MCB in Solar Systems

Proper installation is key to safety. Here are some practical tips to install your AC MCB correctly:

• Install on the AC output side: Place the MCB between the inverter and your home’s electrical panel.

• Use the right size: Don’t oversize or undersize the MCB. Follow manufacturer guidelines.

• Keep wiring neat: Use proper cable sizes and secure connections.

• Label the MCB: Mark it clearly as the solar system’s AC protection.

• Test regularly: Check the MCB operation during routine maintenance.




If you are unsure, hire a qualified electrician. Proper installation ensures your system is safe and reliable.

Benefits of Using AC MCB for Solar Systems

Using an AC MCB brings many benefits. It is a small investment that saves you from big losses. Here’s why you should never skip it:

• Protects expensive equipment: Prevents damage to inverters and wiring.

• Prevents fire hazards: Cuts off power during faults to avoid fires.

• Improves system reliability: Reduces downtime by quickly isolating faults.

• Easy maintenance: Allows safe disconnection for repairs.

• Complies with safety standards: Meets electrical safety codes in India.




For anyone investing in solar power, the AC MCB is a must-have. It gives peace of mind and protects your investment.

If you want to learn more about the right ac mcb for solar system, check out trusted solar solution providers. They can guide you on the best products for your needs.

Moving Towards Safer Solar Energy

Solar energy is the future. But safety must come first. The AC MCB plays a vital role in making solar systems safe and reliable. It protects your home, business, and farm from electrical faults.

By understanding the role of the AC MCB, you can make better decisions. Choose the right MCB, install it properly, and maintain it well. This will ensure your solar system works efficiently for years.

Switching to solar is a smart move. Adding the right safety devices like the AC MCB makes it even smarter. Take action today to secure your solar investment and enjoy clean energy without worry.
